1.8 Ton Mini Excavator R327 Kubota D722 EPA Tier 4 Diesel Side Swing Boom 8-Way Pilot Control Expandable Tracks 35.5–47.4" 5.8ft Dig Depth 6 Attachments Quick Connect 90% Pre-Assembled USA Warehouse
Excavator +Attachment
$10,232.12
跳至产品信息
1.8 Ton Mini Excavator R327 Kubota D722 EPA Tier 4 Diesel Side Swing Boom 8-Way Pilot Control Expandable Tracks 35.5–47.4" 5.8ft Dig Depth 6 Attachments Quick Connect 90% Pre-Assembled USA Warehouse
$10,232.12

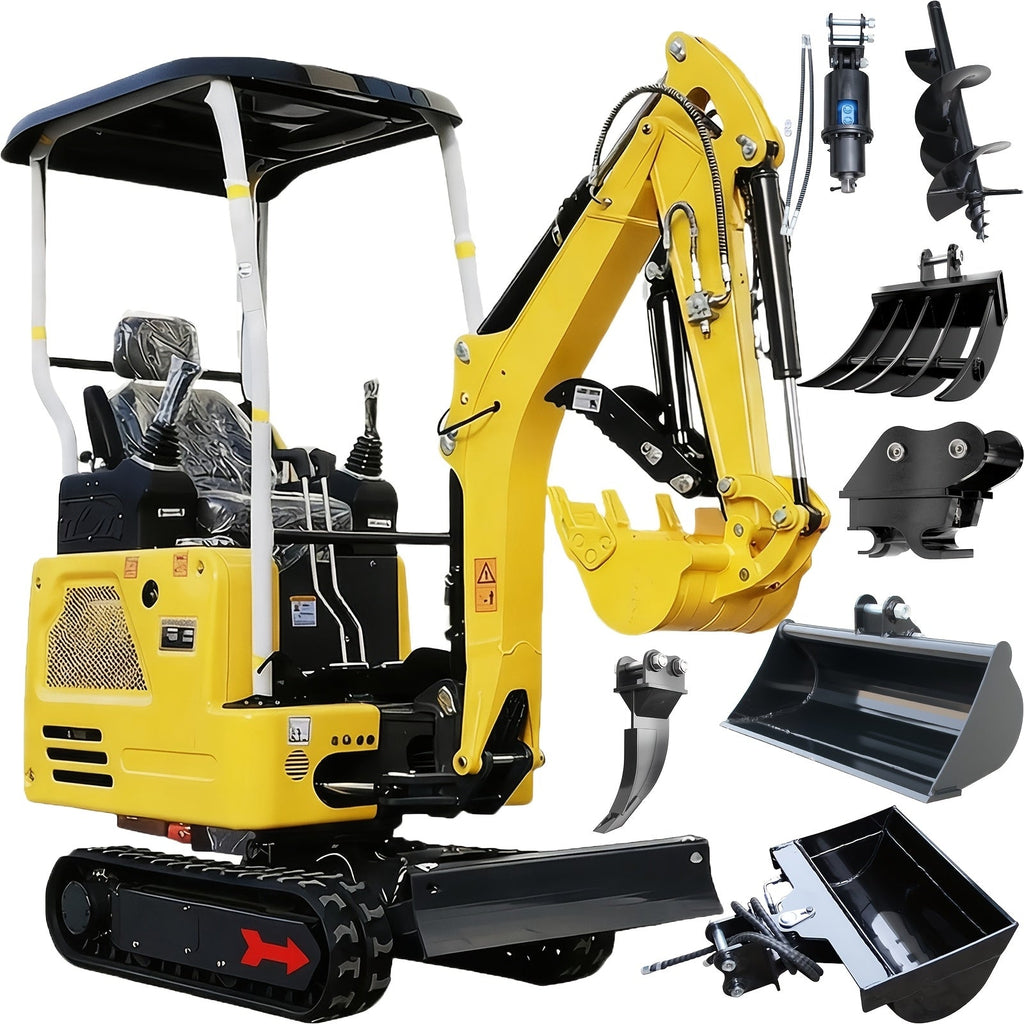

Professional Compact Excavation – 1.8 Ton Mini Excavator R327 with Kubota D722 EPA Tier 4 Diesel & 6 Attachments
The R327 1.8-ton mini excavator delivers professional-grade digging performance in a compact, gate-access-friendly package—shipped 90% pre-assembled from US warehouses with free door-to-door delivery. Powered by the proven Kubota D722 3-cylinder liquid-cooled diesel engine (13.97 HP / 10.2 kW, EPA Tier 4 compliant), it produces 12.5 kN of digging force with a 5.8 ft (1,777 mm) maximum dig depth and 10.7 ft (3,289 mm) reach. The side swing boom rotates 64° left and 45° right (120° total) for offset digging beside walls and fences without repositioning the machine. Expandable tracks adjust from 35.5" to 47.4" for narrow gate access and wide working stability. Includes hydraulic thumb, quick-connect for 6 attachment types, and a hidden hose design that protects hydraulic lines inside the steel boom.
Why Contractors, Farmers & Landscapers Choose the R327
- ⚙️ Kubota D722 EPA Tier 4 Diesel Engine – 13.97 HP – 3-cylinder liquid-cooled diesel engine with EPA Tier 4 emissions compliance delivers high torque output, low noise operation, and proven long-term reliability across construction, landscaping, and agricultural applications
- 🔄 Side Swing Boom – 120° Total Swing (64° Left / 45° Right) – Offset boom swings independently of machine travel to dig directly alongside walls, foundations, fences, and curbs without repositioning the chassis—essential for confined-space and close-proximity excavation
- 🎮 8-Way Hydraulic Pilot Control Joysticks – Upgraded proportional hydraulic pilot joysticks provide smooth, linear, fatigue-reducing control across all machine functions simultaneously (lift, swing, curl, travel)—superior precision vs. mechanical linkage systems

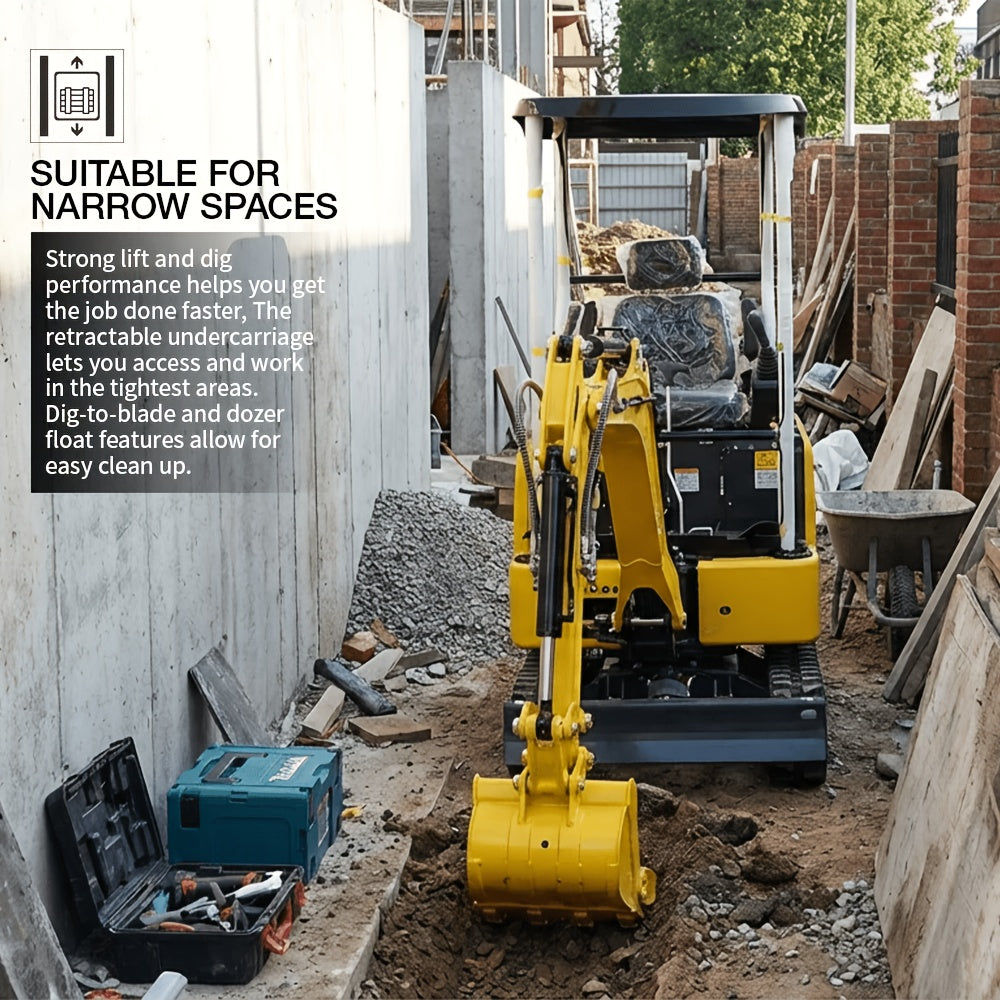

- 🛤️ Expandable Tracks – 35.5" to 47.4" (900–1200mm) – Retract to 35.5" to pass through standard backyard gates, doorways, and narrow alleys; extend to 47.4" for maximum stability during deep digging and heavy lifting operations
- 🔧 Quick-Connect for 6 Attachment Types – Built-in quick-change connector enables rapid swapping between standard bucket, mud bucket, rake, ripper, hydraulic breaker, and hydraulic thumb—switch applications without specialized tools on-site
- 💪 12.5 kN Digging Force – 5.8ft Depth / 10.7ft Reach – Professional-level 4,000 lb operating weight delivers stable, high-force digging performance for utility trenching, pond excavation, foundation work, and heavy earthmoving tasks
- 🛡️ Hidden Hose Design – Critical hydraulic lines are routed internally through the steel boom structure—protected from snagging on rocks, roots, and debris that commonly damage externally-routed hoses on conventional excavators
- 📦 90% Pre-Assembled – Wooden Crate Protection – US Door-to-Door – Arrives 90% assembled in a heavy-duty wooden crate with all installation tools and an English operation manual—minimal on-site assembly required; ships from multiple US warehouses with free door-to-door delivery

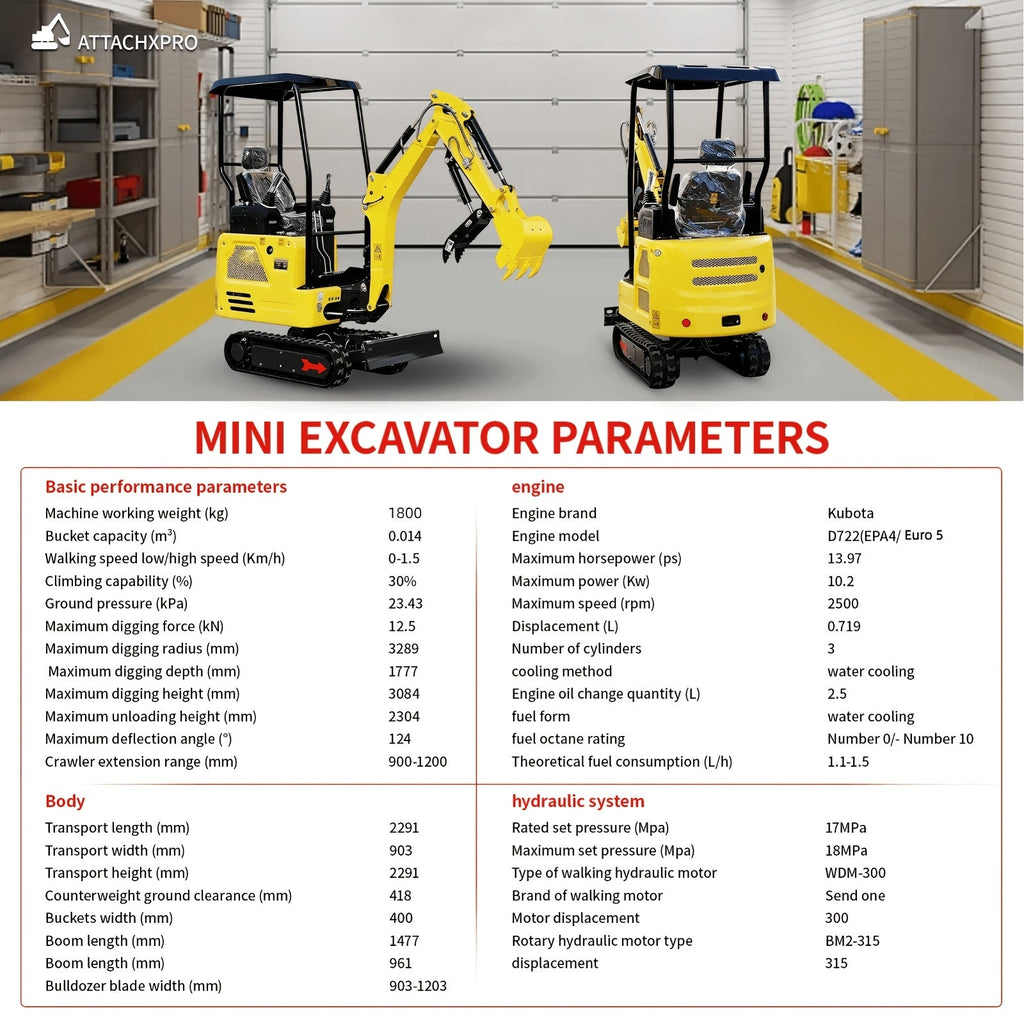

Technical Specifications
| Specification | Value |
|---|---|
| Model | R327 |
| Operating Weight | 1,800 kg (4,000 lbs) |

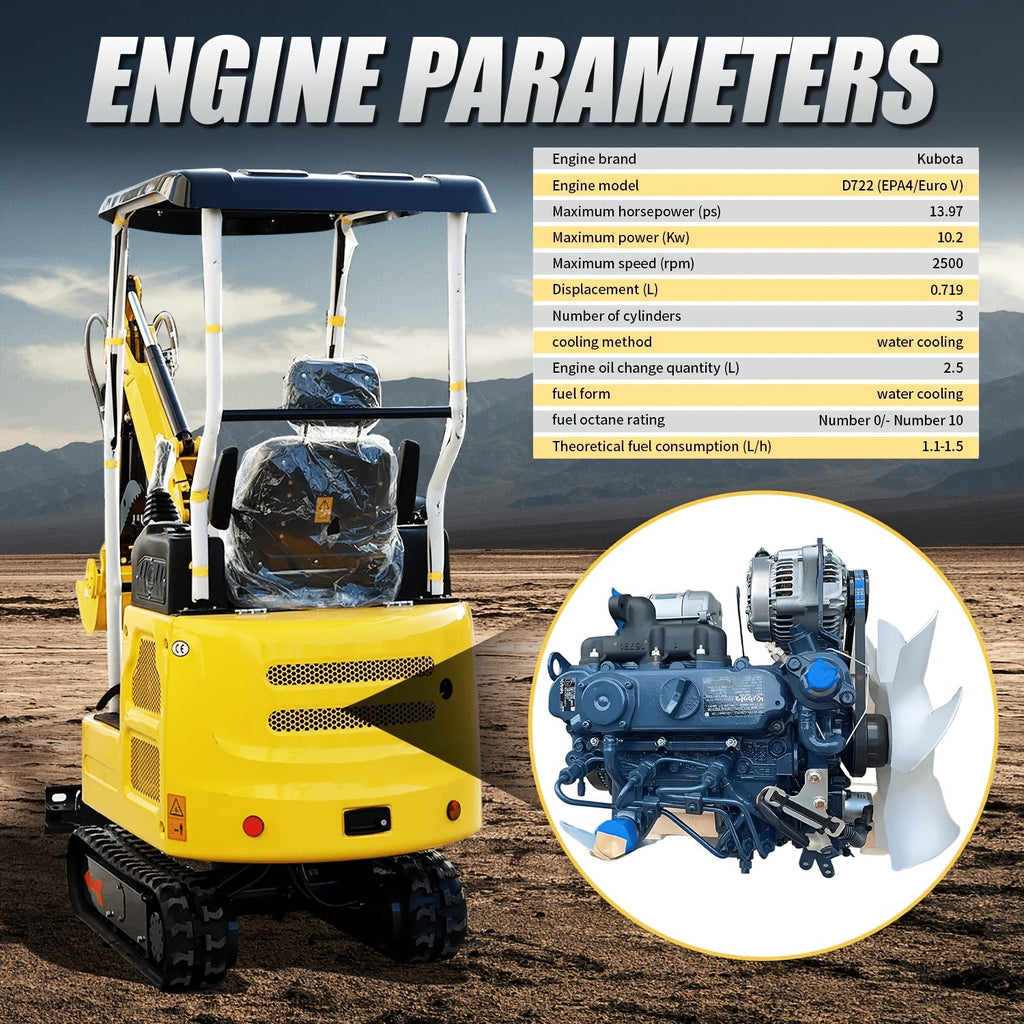

| Engine | Kubota D722 – 3-Cylinder Liquid-Cooled Diesel |
| Engine Power | 13.97 HP / 10.2 kW |
| Emissions | EPA Tier 4 Compliant |
| Digging Force | 12.5 kN |
| Max Dig Depth | 5.8 ft (1,777 mm) |
| Max Reach | 10.7 ft (3,289 mm) |
| Boom Swing | 64° Left / 45° Right (120° Total) |
| Track Width (Retracted) | 35.5" (900 mm) |
| Track Width (Extended) | 47.4" (1,200 mm) |
| Attachments Included | Hydraulic Thumb + Quick-Connect for 6 Types |
| Assembly | 90% Pre-Assembled |
| Shipping | US Warehouse – Free Door-to-Door Delivery |
What’s Included
| Item | Details |
|---|---|
| Mini Excavator R327 | 90% Pre-Assembled |
| Hydraulic Thumb | Included |
| Tool Box + Installation Tools | Full set included |
| English Operation Manual | Included |
Frequently Asked Questions
Q: How much assembly is required on delivery?
A: The R327 arrives 90% pre-assembled in a protective wooden crate. Only minor final assembly steps are required on-site—all matching installation tools and an English operation manual are included. Most operators complete setup without professional assistance.
Q: Can this excavator fit through a standard backyard gate?
A: Yes. With tracks retracted to 35.5" (900mm), the R327 can pass through standard residential backyard gates, doorways, and narrow alleys—then expand to 47.4" for maximum working stability on-site.
Q: What attachments are compatible with this excavator?
A: The R327 is equipped with a quick-change connector compatible with 6 attachment types: standard digging bucket, mud bucket, rake, ripper, hydraulic breaker, and hydraulic thumb. Attachments can be swapped rapidly on-site without specialized tools.
Q: Is the Kubota engine EPA compliant for use in the USA?
A: Yes. The Kubota D722 engine on the R327 is EPA Tier 4 compliant—meeting current US exhaust emissions standards for non-road diesel engines in this horsepower class.
Q: Does this ship from within the United States?
A: Yes. The R327 ships from multiple US warehouse locations with free door-to-door delivery service—faster delivery and simpler logistics than internationally sourced heavy equipment.
USA Warehouse – Free Shipping
Ships 90% pre-assembled from our US warehouse — free door-to-door delivery included. Get professional excavation capability delivered directly to your job site!
